EG-5000
Files

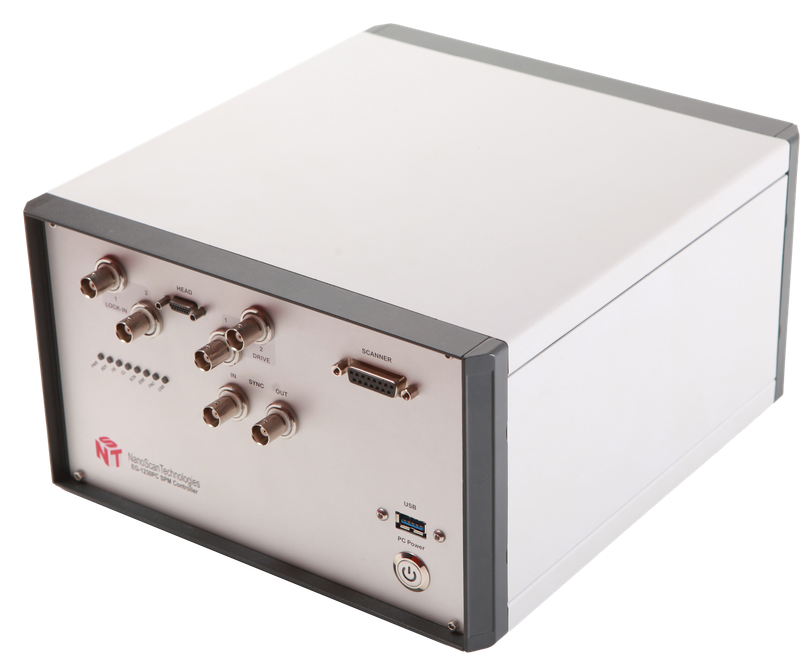

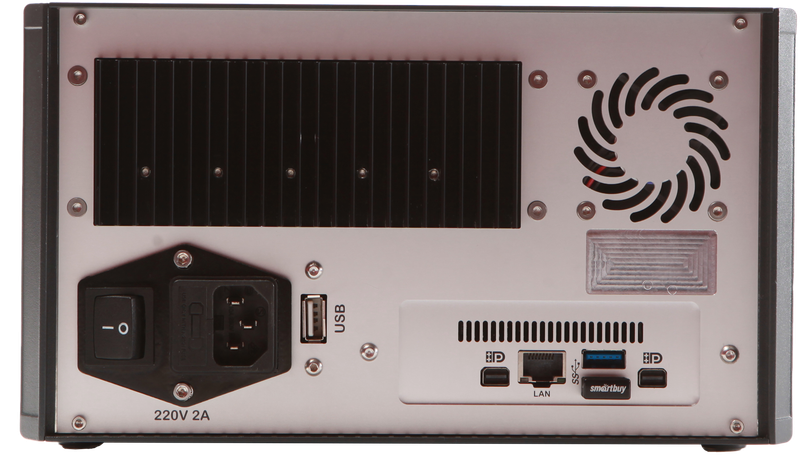

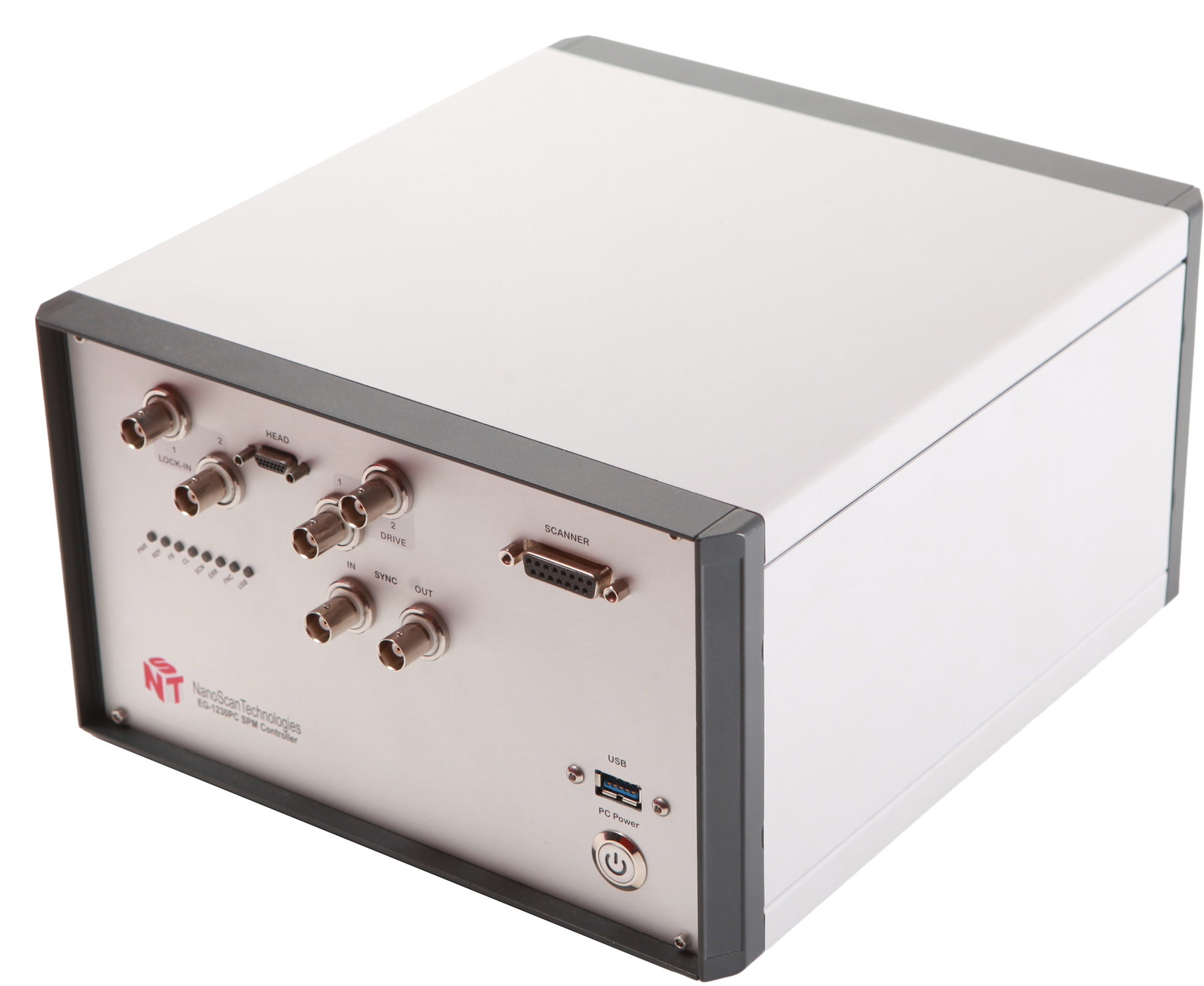

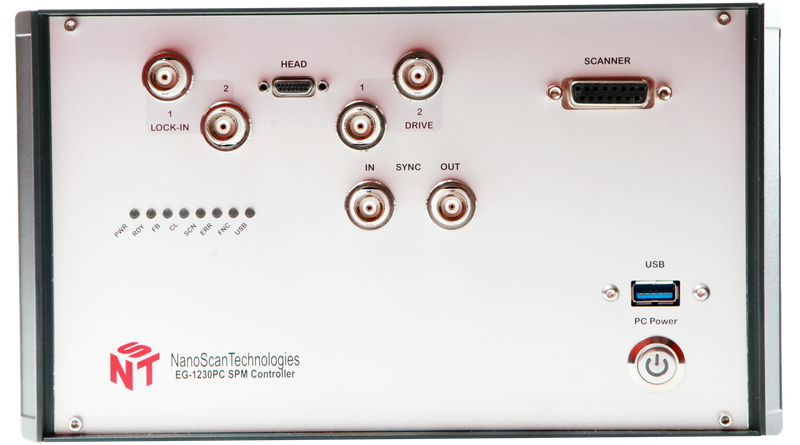

Electronic control unit EG 5000 is the latest modification of the EG series controllers, designed to control the scanning probe microscopes, nano positioning devices, all modifications. The main distinctive features are:
1. Using a powerful FPGA Cyclone V, allowing a higher speed to process the data and output control signal.
2. Embedded PC with Linux operating system, installed software, allows you to unify the system and to avoid difficulties in installing and upgrading software.
Specification:
| CPU | PLL Cyclone V; 32 bit float; |
| PC Interface | USB 3.0 |
| Other interfaces | RS 232, RS485, SYNC I/O |
| High-voltage outputs | |
| Voltage | -10..150 V |
| Noise | < 5 ppm |
| Number of channels | 3 |
| Low Voltage range | -10..+40V |
| HV Resolution (HV Dacs) | 18 bit |
| Stepper motors control unit | |
| Number of channels | 4 |
| Power supply | 24V, 3A |
| Microstepping mode support | 1/16 step |
| Lock-in amplifier | |
| Number of channels | 2 |
| Preamplifier gain | 1-100 |
| Input voltage range | ±10 V |
| ADC resolution | 16 bit |
| Frequency range of input signals | 0-10 MHz |
| Frequency range of main oscillator | 10 Hz – 10 MHz |
| Output voltage amplitude | 10 mV-10 V |
| Frequency stability | < 5 ppm |
 |
 |
